Every bath comes with standard Fittings
Throughout this site, there are references to the Fittings that come with each bath Trojan manufacture. Below is the detail behind each of type of fitting we offer. However, the fittings vary dependent on geographical location so any queries, please do not hesitate to get in touch on 01484 648181.

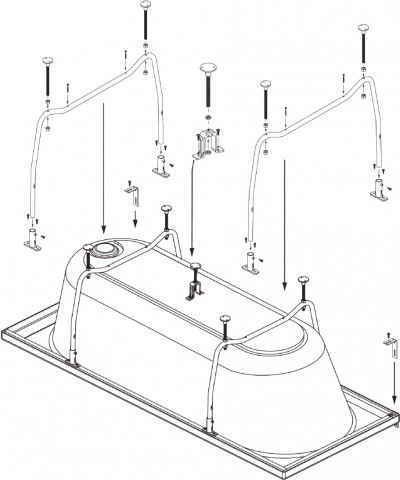

CRADLE FITTINGS
UK Only, Parts Provided:
x1 Pair of Tubular Cradles, x4 Cradle Toggles, x4 M10x152mm Feet, x2 Wall Fixing Brackets, x4 Transit Cradle Fixing Screws, x16 16mm Self Tapping Screws, x1 M8x117mm Centre Foot, x1 Centre Foot Bracket, x8 M10 Nuts, x2 M8 Nuts

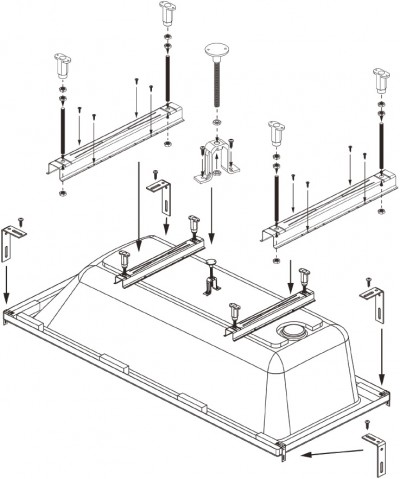

Continental Fittings
Parts Provided:
x2 500mm Channels, x4 M12x120mm Allthreads, x4 16mm Self Tapping Screws, x4 Wall Fixing Brackets, x4 M12x65mm Plastic Foot, x12 M12 Nuts, x4 M8x90mm Plastic Foot, x1 M8x90mm Centre Foot, x1 Centre Foot Bracket, x2 M8 Nuts

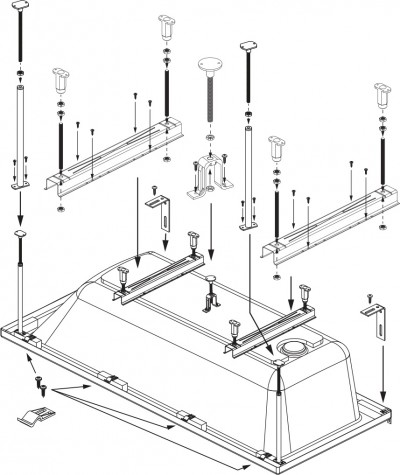

Luxury Fittings
Parts provided:
x2 500mm Channels, x4 M12x120mm Allthreads, x4 16mm Self Tapping Screws, x4 Wall Fixing Brackets, x4 M12x65mm Plastic Foot, x12 M12 Nuts, x4 M8x90mm Plastic Foot, x1 M8x90mm Centre Foot, x1 Centre Foot Bracket, x2 M8 Nuts, x2 350mm Jack Legs, x2 M200 Feet, x2 M10 Locking Nuts, x8 Panel Clips (may not be required on some installations)
Corner Fittings
Parts Provided:
x2 500mm Channels, x32 16mm Self Tapping Screws, x4 M12x120mm Allthreads, x2 Wall Fixing Brackets, x4 M12x65mm Plastic Foot, x8 Panel Clips, x1 M8x90mm Plastic Foot, x1 Centre Foot Bracket, x2 M10 Nuts, x12 M12 Nuts
Universal Engineered Frame Fittings
Parts Provided:
x2 Adjustable frame lengths (1900.1800.1700.1600), x2 Adjustable frame widths (900.800.750.700), x4 M10x19x400mm Jack legs, x8 M10x200mm Oval bath feet, x1 Centre foot bracket, x4 Wall fixing brackets, x6 Metal adjustable panel brackets, x6 Self-adhesive Velcro pads, x6 Plastic adjustable panel brackets, x1 M10x50 Bolts, x22 M10 Nuts, x4 Penny Washers, x24 M10 Washers, x24 32xNo8x16 Self Tapping Scews
